System Overview

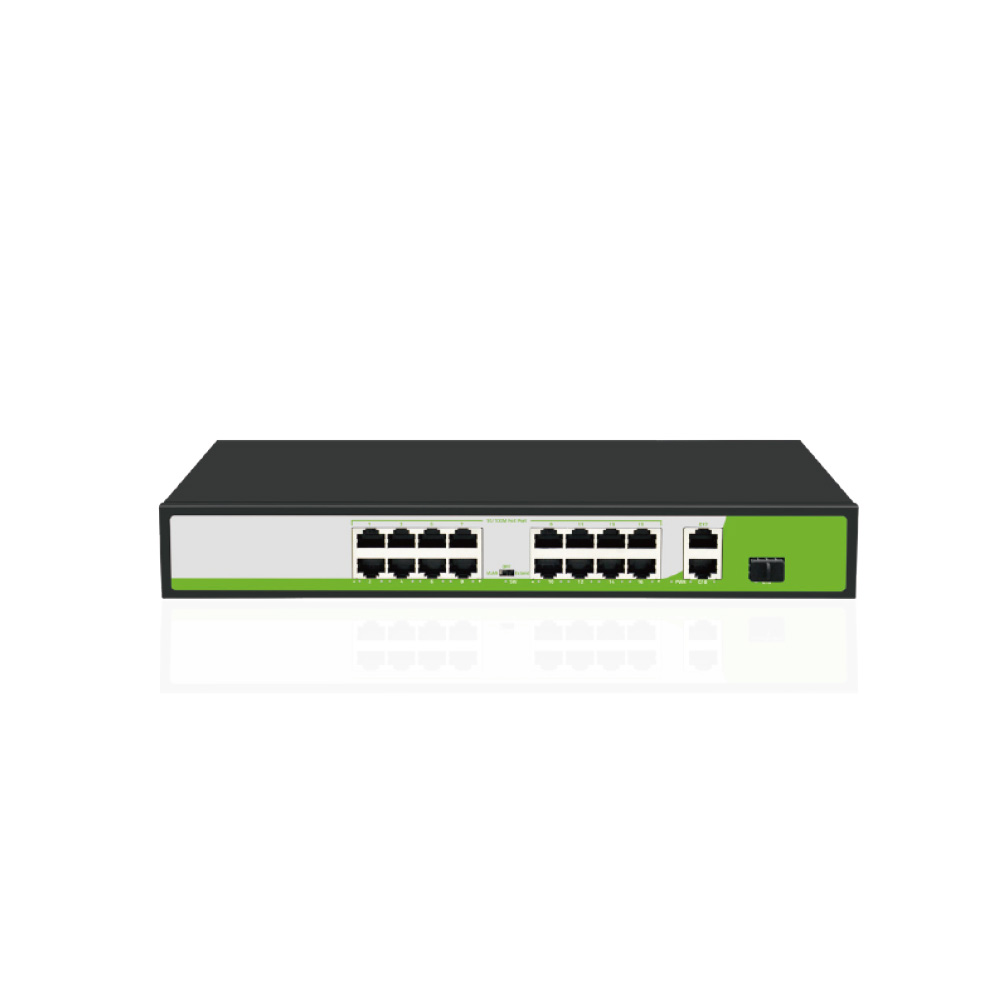

PE162-200C is an advanced PoE switch providing a network point for data transmission and power supply.
lt has 16 PoE ports that can provide standard lEEE802.3af/at power supply through network cables.Because of the advanced self-sensing algorithm for supplying power over lEEE802.3af/at, the connected PoE ornon-PoE standard equipment is safely protected
Functions
1，16*10/100M RJ-45(POE)+2*10/100/1000M RJ-45+1*1000 SFP
2，Conforms to lEEE 802.3, IEEE 802.3u and lEEE802.3af/at
3，The max. PoE power outputis 15.4 W (lEEE 802.3af)/ 30 W (lEEE 802.3at)
4，250 meters of PoE transmission distance of power and data (Cat 6)
5，MDI/MDlX self-adaptation
6，Store-and-forward switching
7，Lightning protection
8,Surge Protection: Common mode 4Kv, Differential 2KV(level B), ESD 8KV air, 6kV contact(level C).
| Model | PE162-200-C | |
| Port | 16*10/100MRJ-45(POE)+2*10/100/1000M RJ-45+1*1000 SFP | |
| Network Protocol | IEEE802.3,IEEE802.3U,IEEE802.3x,IEEE802.3af/at | |
| PoE | PoE Standard | IEEE802.3af/IEEE802.3at |
| PoE Consumption | Max 15.4 W (IEEE 802.3af )/30 W (IEEE 802.3at) | |
| PoE Compatibility | IEEE 802.3af/at self-adaptation | |
| Output Voltage | DC48V | |
| Network Cable | 10Base-TX: Cat6a UTP/STP(≤100m)100Base-TX:Cat5e UTP/STP(≤250m)1000Base-TX: Cat5e UTP/STP(≤100m) | |
| Backplane Bandwidth | 9.2Gbps | |
| Packet Forwarding Rate | Each port 0.1488Mpps/ 1.488Mpps | |
| MAC Size | 2K | |
| Switching | Store-and-Forward | |
FAQ
Q:How can I trust you？
A:We have specialized in this field since 2005, enough experience, high quality products, excellent after-sale service, trust us.
Q:Can you supply the relevant documentation?
A:Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
Q:What is the average delivery time?
A:For samples, the lead time is about 7 days. For mass production, the delivery time is 20-30 days after receiving the deposit payment. The delivery times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our delivery times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs.
Q:About Payment Method
A:T/T(Bank Transfer),Western Union,Money Gram,Paypal,Trade Assurance,etc.
Q:What is the product warranty?
A:We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone’s satisfaction
