Fetures
1，H.265/H.264 decoding
2，Support 8- or 16-channel 5MP IP cameras input & preview
3，Support 4 channels real-time playback synchronously
4，HDMl output up to 1080P high definition
5，Intelligent video analytics functions
6，TCP/IP, DHCP, DDNS, SMTP, NTP, UPNP, RTSP, etc.
7，P2P cloud service supported
8，Compatible with ONVlF Profile S protocol
System Overview
GT-851 6NEQ is a network video recorder (NVR) supports 8- channel or 16-channel 5MP IP camera input and preview.GT-8516NE0 support H.265 decoding and full HD HDMl output. its user-friendly GUl provides an intuitive shortcut operations, including remote control and playback.
Also, Z8516NE0 is compatible with profle S protocol, which enhances its interoperability with 3rd party iP camera anovideo security management platform. This NVR offers a good quality for video surveilance in government institution, bankor commercial projects.
Functions
1，Support intelligent video analytics (lVA) such as Tripwire / Target Counting / Object Left/Lost / Intrusion, etc..
2，User-friendly & full function VMS / Mobile App (AntarView Pro+ (iOs & Android).
3,Alarm events linkage actions such as email, audio, buzzer and alarm push message to Mobile App (Antarview Pro+ (i0s& Android)) and VMS
| Model | GT-8516NEQ |
| Main Processor | Multi-core embedded processor |
| Operating System | Embedded LINUX |
| Max IPC Video Input | 16CH |
| Two-way Talk | Support |
| Audio Compression | G.711 |
| Display Split | 1/4/6/9/16 CH |
| Resolution | 5MP(2592*1944)/2MP(1920*1080)/ 1.3MP(1280*1024)/1Mp(1280*720)/D1(1024*768) |
| Video Compression | H.265/H.264 |
| Live View Capability | 1CH@5MP/16CH@D1(25/30fps) |
| Recording Resolution | 5MP/3MP/1080P/960P/720P/D1/VGA/4CIF/DCIF/2CIF/CIF |
| Search Mode | Time/ Date, Alarm Types, lVA Search |
| Backup Mode | USB Device/Network Remote |
| Network Protocol | TCP/IP,UDP, HTTP, DDNS, SMTP(SSL), DHCP, RTSP, NTP, P2P |
| Max. Online User | 20 |
| Web Browser | Internet Explorer/ Microsoft Edge |
| Operation System | WindowsManagement Platform |
| Management Platform | AntarVis 2.0 |
| P2P Cloud Service | Support |
| Power Supply | DC 12V/2A |

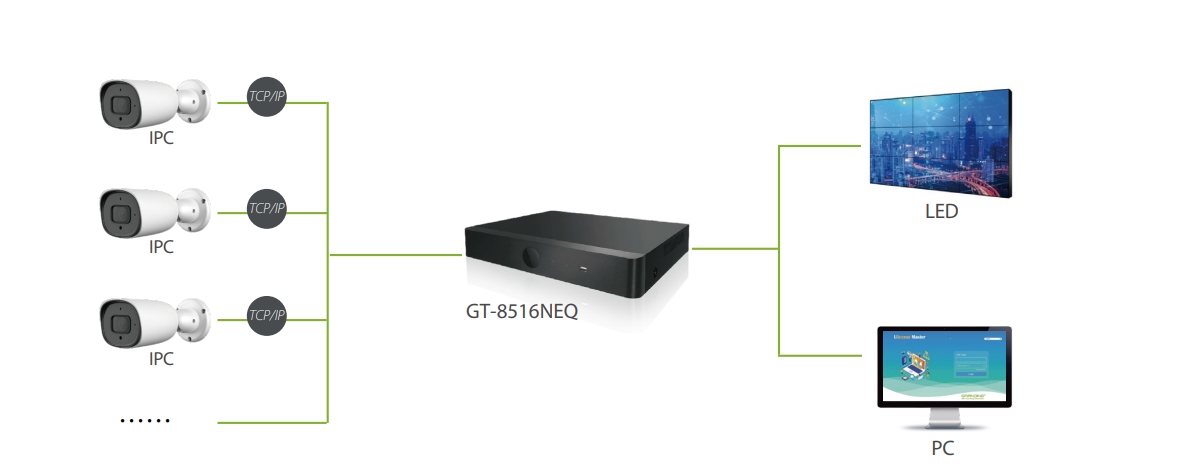

Working Application

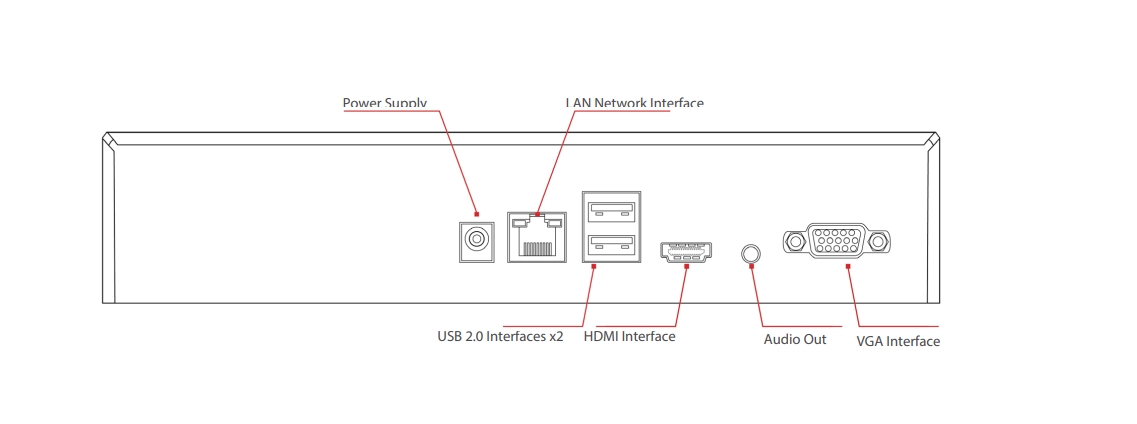

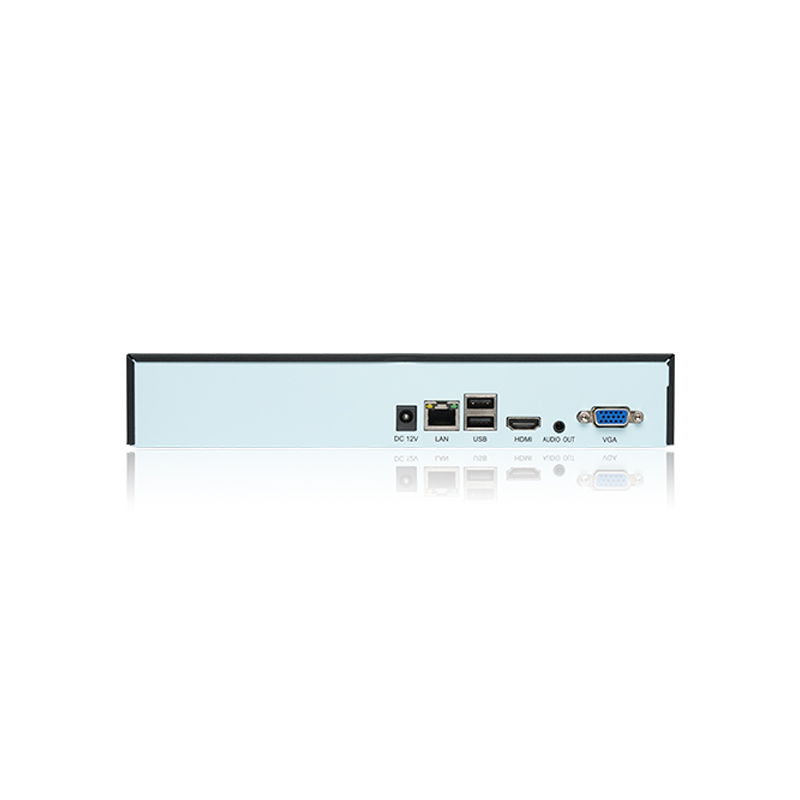

Rear Panel
FAQ
Q:How can I trust you？
A:We have specialized in this field since 2005, enough experience, high quality products, excellent after-sale service, trust us.
Q:Can you supply the relevant documentation?
A:Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
Q:What is the average delivery time?
A:For samples, the lead time is about 7 days. For mass production, the delivery time is 20-30 days after receiving the deposit payment. The delivery times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our delivery times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs.
Q:About Payment Method
A:T/T(Bank Transfer),Western Union,Money Gram,Paypal,Trade Assurance,etc.
Q:What is the product warranty?
A:We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone’s satisfaction.
