Hybrid Biometric & OR code Handheld MobileTime Attendance Terminal：Horus H1

Brand Granding
Model Horus H1
Send email to us
Detail

Features

1，5.5 inch IPS LCD HD display (720*1440)

2，5 MP+13 MP front and rear camera

3，Support 2.4GHz/5.0GHz Wi-Fi, Bluetooth,4G, GPS, NFC

4，Embedded 5200mAh li-ion battery, support up to 5 operating hours

5，Support high-speed and accurate QR code/barcode scanning

6，Facial recognition distance: 0.3m to 2m; Facial recognition speed <1s;

      User Facial recognition accuracy rate ≥99%

7，Support mask detection

8，A hexagonal rugged casing with tempered glass surface and achieved lP65 protection rating

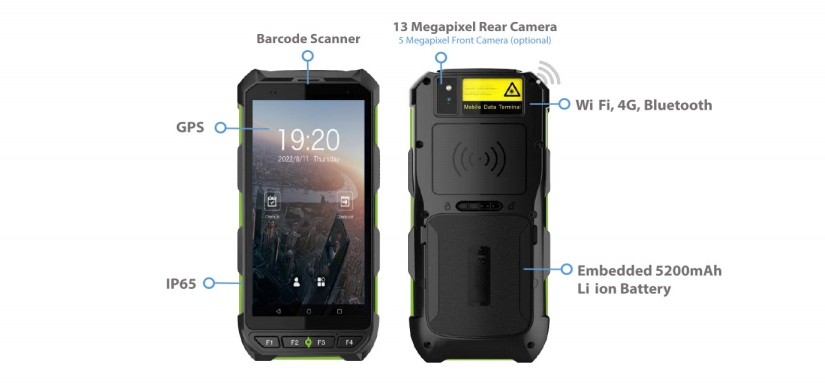

1.pngWorking Application


Structure


Applications

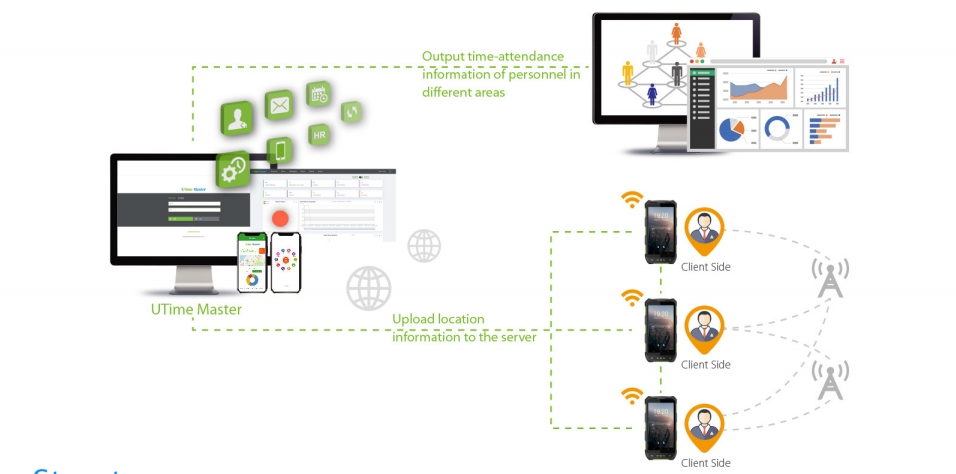

System
Operation SystemAndroid 10.0
CPU64bit Octa-core Cortex-A73 CPU, 2.0GHz
Storage4GB RAM /64GB ROM, Micro SD card (max 256GB expansion)
SDKPUSH SDK
Display5.5 inch IPS Capacitive LCD touch screen
Screen Resolution720x440
CameraDual Lens Rear camera (13 megapixels); Front camera (5 megapixels)
QR Code & BarcodeOR code, PDF417, Data Matrix, MicroPDF417, Aztec scanning in third-party development projects
Supported Card TypeISO14443A& 15693,NFC-IP1,NFC-IP2
Capacity
User Capacity50,000
Face Capacity50,000
Fingerprint Capacity30,000 (Optional)
Card Capacity50,000
Logs Capacity1,000,000
Interface1 x USB 2.0 Type-C
Protection levelIP65
Supported SoftwareUTime Master
Firmware FunctionsPush, Schedule Bell, Automatic Status Switch, Record Query, Groups, Holidays, DST, Workcode,Duress Mode (Password & Fingerprint), Customization of Wallpaper & Screen Saver
LanguageEnalish, Korean, Latin American, Indonesian, Vietnamese, Traditional Chinese, Portuguese,Spanish, Farsi, Japanese, Russian and Thai
























Specification
